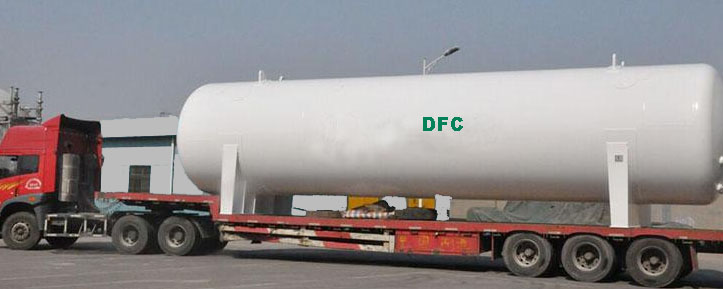

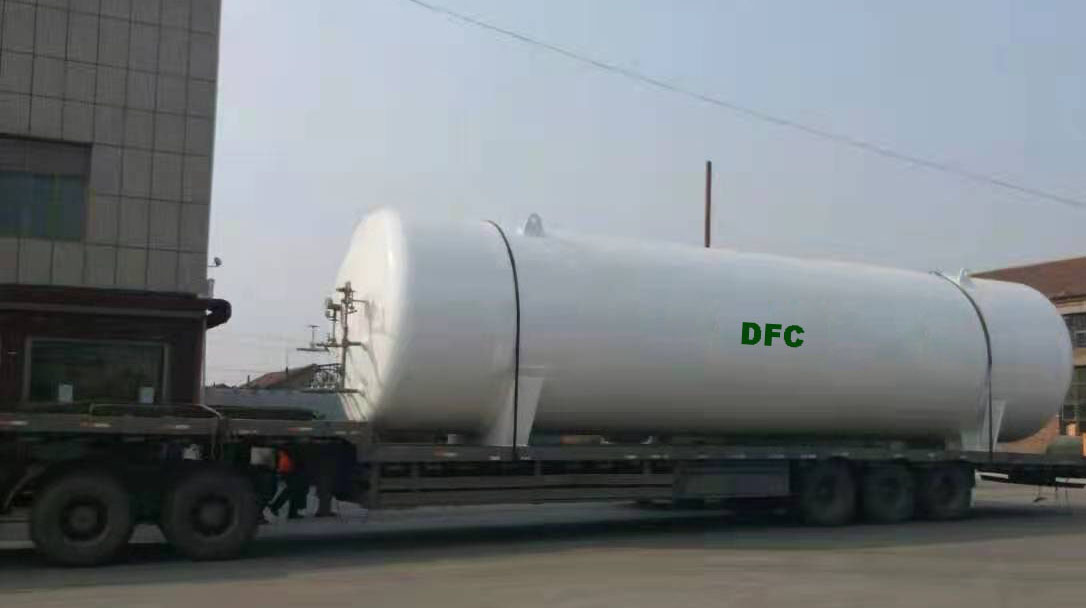

Tanque de oxígeno líquido criogénico a granel, PED, ASME
Especificaciones / funciones principales
N º de Modelo.: hits: 0
Tanque a granel de oxígeno líquido criogénico Fabricante: Tanque a granel de oxígeno líquido de alta calidad, PED, ASME, Volumen 5-200 M3 que cubre diversas necesidades.
Solicitar
Etiquetas:
Detalles
Debido a la rápida propagación de la COVID-19, el almacenamiento de oxígeno médico es especialmente importante. DFC se comprometió con el diseño y fabricación de recipientes a presión industriales, especialmente tanques de almacenamiento de oxígeno líquido médico. Haremos todo lo posible para producir tanques de almacenamiento de alta calidad para contribuir a la lucha contra la epidemia.
TANQUE DE ALMACENAMIENTO DE OXÍGENO LÍQUIDO CRIOGÉNICO DFC
DFC CRYOGENIC LIQUID OXYGEN STORAGE TANK
TANQUE DE ALMACENAMIENTO DE OXÍGENO LÍQUIDO CRIOGÉNICO DFC
| TYPE | MODEL | VOLUME (M3) |
SPECIFICATION | DESIGN CODE | |
| Inside shell | Outside Shell | ||||
| Vertical | CFL-5/0.8 | 5 | φ1400X3672X6 | φ1900X5115X8 | ASME/PED |
| Vertical | CFL-5/1.6 | φ1400X3672X8 | φ1900X5115X8 | ASME/PED | |
| Vertical | CFL-10/0.8 | 10 | φ1700X4705X6 | φ2200X6035X8 | ASME/PED |
| Vertical | CFL-10/1.6 | φ1700X4705X10 | φ2200X6035X8 | ASME/PED | |
| Vertical | CFL-15/0.8 | 15 | φ1800X6214X6 | φ2300X7730X8 | ASME/PED |
| Vertical | CFL-15/1.6 | φ1800X6214X11 | φ2300X7730X8 | ASME/PED | |
| Vertical | CFL-20/0.8 | 20 | φ2100X6146X7 | φ2600X7655X8 | ASME/PED |
| Vertical | CFL-20/1.6 | φ2100X6146X12 | φ2600X7655X8 | ASME/PED | |
| Vertical | CFL-30/0.8 | 30 | φ2100X9046X8 | φ2600X10605X8 | ASME/PED |
| Vertical | CFL-30/1.6 | φ2100X9046X14 | φ2600X10605X8 | ASME/PED | |
| Vertical | CFL-50/0.8 | 50 | φ2600X9885X9 | φ3200X11670X10 | ASME/PED |
| Vertical | CFL-50/1.6 | φ2600X9885X16 | φ3200X11670X10 | ASME/PED | |
| Vertical | CFL-100/0.8 | 100 | φ3000X14670X11 | φ3600X16550X14 | ASME/PED |
| Vertical | CFL-100/1.6 | φ3000X14670X20 | φ3600X16550X14 | ASME/PED | |
| Vertical | CFL-150/0.8 | 150 | φ3200X19308X12 | φ3800X22000X14 | ASME/PED |
| Vertical | CFL-200/0.8 | 200 | φ3400X22624X14 | φ4000X25300X14 | ASME/PED |
| TYPE | MODEL | VOLUME (M3) |
SPECIFICATION | DESIGN CODE | |
| Inside shell | Outside Shell | ||||
| Horizontal | CFL-5/0.8 | 5 | φ1400X3672X6 | φ1900X4802X8 | ASME/PED |
| Horizontal | CFL-5/1.6 | φ1400X3672X8 | φ1900X4802X8 | ASME/PED | |
| Horizontal | CFL-10/0.8 | 10 | φ1700X4705X6 | φ2200X5980X8 | ASME/PED |
| Horizontal | CFL-10/1.6 | φ1700X4705X10 | φ2200X7210X8 | ASME/PED | |
| Horizontal | CFL-15/0.8 | 15 | φ1900X5626X6 | φ2400X7210X8 | ASME/PED |
| Horizontal | CFL-15/1.6 | φ1900X5626X11 | φ2400X7210X8 | ASME/PED | |
| Horizontal | CFL-20/0.8 | 20 | φ2100X6146X7 | φ2600X7310X8 | ASME/PED |
| Horizontal | CFL-20/1.6 | φ2100X6146X12 | φ2600X7310X8 | ASME/PED | |
| Horizontal | CFL-30/0.8 | 30 | φ2100X9046X8 | φ2600X10200X8 | ASME/PED |
| Horizontal | CFL-30/1.6 | φ2100X9046X12 | φ2600X10300X8 | ASME/PED | |
| Horizontal | CFL-50/0.8 | 50 | φ2600X9885X8 | φ3200X11400X10 | ASME/PED |
| Horizontal | CFL-50/1.6 | φ2600X9885X14 | φ3200X11275X10 | ASME/PED | |
| Horizontal | CFL-100/0.8 | 100 | φ3000X14670X10 | φ3600X16350X12 | ASME/PED |
| Horizontal | CFL-100/1.6 | φ3000X14670X16 | φ3600X16900X12 | ASME/PED | |
| Horizontal | CFL-150/0.8 | 150 | φ3200X19308X10 | φ3800X20700X12 | ASME/PED |
| Horizontal | CFL-200/0.8 | 200 | φ3400X22624X11 | φ4000X24500X12 | ASME/PED |
