Three-phase separators play a crucial role in oil and gas production, particularly in the processing and purification of crude oil and natural gas. By efficiently separating gas, liquid, and solid phases, three-phase separators ensure the smooth operation of production processes. The working process of a three-phase separator involves multiple separation zones, each with its unique separation mechanisms that work together to achieve optimal separation. Key zones such as the primary separation zone, gravity separation zone, and mist elimination zone handle droplets of different sizes through mechanisms like gravity, centrifugal force, and collision separation, ensuring thorough separation of each phase. This article will provide a detailed analysis of these key separation zones and their corresponding mechanisms, revealing how three-phase separators achieve efficient oil and gas separation at various stages.

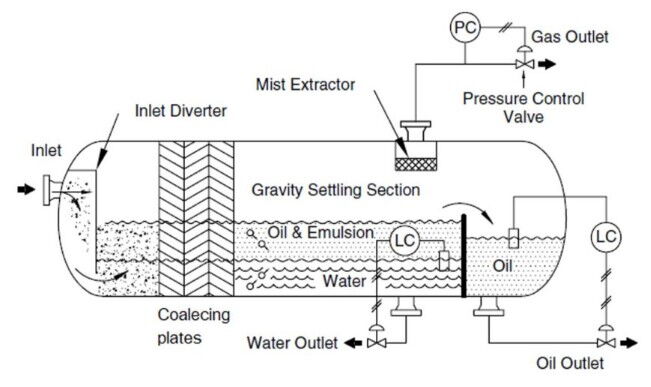

Key Separation Zones of Three-Phase Separators
Three-phase separators are vital in oil and gas production, especially in the treatment and purification of crude oil and natural gas, ensuring the separation of different phases (gas, liquid, and solid). Through multiple separation zones and different separation mechanisms, three-phase separators can efficiently separate liquid and gas mixtures. The working process of a three-phase separator mainly includes key zones such as the primary separation zone, gravity separation zone, and mist elimination zone, each playing a unique role.
1. Primary Separation Zone
The primary separation zone is responsible for separating the majority of liquid droplets from the liquid phase. In this zone, the fluid first passes through an inlet diverter, designed to abruptly and effectively change the flow direction and velocity of the fluid. This change causes the droplets to collide with the diverter and begin to fall due to gravity, further separating most of the liquid phase. This process is the first step in separation, primarily relying on inertial collision and gravity to achieve separation, making it a critical zone for initial separation.
2. Gravity Separation Zone
The gravity separation zone is the core area of the three-phase separator and the main site for gas-liquid separation. In this zone, the flow velocities of the gas and liquid phases are relatively slow, allowing the gas flow to gradually decelerate, enabling small droplets suspended in the gas flow to separate from the gas through gravity. Droplets in the liquid phase aggregate under gravity, gradually forming larger droplets, which are eventually discharged through the drain at the bottom of the separator. The key role of this zone is to utilize the density difference between liquid and gas to complete the separation of gas and liquid.
The gravity separation zone is a critical part of the normal operation of the three-phase separator. In this zone, gravity and buoyancy interact, and different droplets are separated and aggregated based on density differences. This process not only relies on gravity but also involves factors such as droplet size and velocity. To ensure the safe and stable operation of the separator, special attention must be paid to the operating conditions of the gravity separation zone, such as flow velocity and pressure control. Blockages or unstable fluctuations in this zone can affect the overall performance of the separator.
3. Mist Elimination Zone
Although the gravity separation zone can effectively separate most droplets, its efficiency is limited for very small droplets (typically less than 100 microns). To further remove these tiny droplets, the three-phase separator is equipped with a mist elimination zone. The mist elimination device uses a special impact plane to promote the aggregation of these tiny droplets, forming larger droplets that are then separated from the gas flow by gravity. This method removes residual droplets from the gas phase, thereby improving overall separation efficiency.
The mist elimination zone is typically designed with a mesh structure that effectively captures and aggregates tiny droplets in the gas flow. When the gas passes through the mist eliminator, the droplets cannot change direction with the gas flow due to inertial force and eventually collide with the mesh surface, completing the gas-liquid separation. As the droplets gradually accumulate, larger oil droplets flow down the mesh surface under gravity, ensuring thorough separation.
Overview of Separation Mechanisms at Different Stages
In different working stages of the three-phase separator, various separation mechanisms work together to effectively achieve the separation of gas, liquid, and solid phases. Below is a detailed description of the separation mechanisms at each stage.
1. Initial Separation and Gas-Liquid Separation
In the initial separation stage of the three-phase separator, the liquid enters the liquid inlet chamber through the inlet pipe. At this point, due to the increase in volume and decrease in flow velocity, the liquid flow slows down, and the pressure gradually drops, allowing gas to naturally escape and rise. Oil, gas, and water are preliminarily separated at this stage based on density differences. The separated water enters the settling chamber through the bottom channel, completing the initial liquid-gas separation.
2. Corrugated Plate Separation
After initial separation, the liquid enters the corrugated plate zone. The corrugated plates increase the contact area and, due to their hydrophilic and oleophobic properties, further enhance the separation efficiency of oil, water, and gas. Under the action of the corrugated plates, the phases of oil and water become more distinct, and the liquid enters the settling chamber for finer separation. In this process, an increase in temperature can enhance the collision opportunities of oil and water molecules, improving separation efficiency.
3. Centrifugal Separation and Heating
During centrifugal separation, the oil-gas mixture is pushed by the remaining pressure at the wellhead and sprayed onto inclined plates through the inlet pipe. Under centrifugal force, the gas rises, and the liquid, due to its higher density, sinks onto the inclined plates. In this process, some droplets larger than 100 microns in the gas are removed by the defoamer. The defoamer changes the gas flow direction, causing the droplets to collide with the defoamer surface and eventually fall and settle on the liquid surface, completing the gas-liquid separation.
4. Collision Separation and Mist Elimination
After centrifugal separation, the gas enters the mist eliminator of the three-phase separator. The gas is forced to flow around, and the oil mist, due to its higher density, cannot change direction with the gas flow. As the gas flow accelerates, the inertial force of the oil mist increases, causing it to collide with and adhere to the mesh structure of the mist eliminator. As the oil mist gradually accumulates in the mist eliminator, larger oil droplets flow down the structure surface, achieving collision separation and final gas-liquid separation.
Conclusion
The operation of a three-phase separator relies on the coordinated action of multiple zones and separation mechanisms to achieve efficient separation of gas, liquid, and solid phases. Mechanisms such as gravity separation, centrifugal separation, and collision separation play key roles at different stages. Proper control of operating parameters and equipment optimization are crucial for ensuring the efficient and stable operation of the separator. The separation efficiency of each zone affects the final oil-water-gas separation efficiency, and only through precise control can the normal operation of the equipment be ensured, and the quality of crude oil processing be improved.
