Large Fire Protection Water Storage Tank, API 650, 400 m3
Key Specifications / Features
Model No.: DFC-LST-01 Hits: 710
China Large Storage Tank Factory DFC Supplies Large Fire Protection Water Storage Tank, API 650, Capacity Up to 400m3, -490PaG to 20000 PaG, 80℃.
Request a quote
Tags:
Detail Information
Name: Industrial Large Water Storage Tank.
Standard: API 650, GB 50341.
Media: Water.
Welding Code: JB/T4709.
Welding Structure: Full Penetration Weld Except Noted.
Fluid Perforemnce: Non Toxis/Non Flammable.
Working Temperature (In/Out): 25℃ (Normal Temperature).
Design Temperature: 4℃ to 80℃.
Working Pressure: ATM (Standard Atmosphere).
Design Pressure: -490 PaG to 20,000 PaG.
Corrosion Allow: 3 mm.
Full Capacity: 400 m3/ Approx. 105,668 Gallon.
Wind Pressure: 700 N/m2.
Weight (Net Mass): Up tp 23,730 kg.
Weight (Mass of Full Water): Up to 423,730 kg.

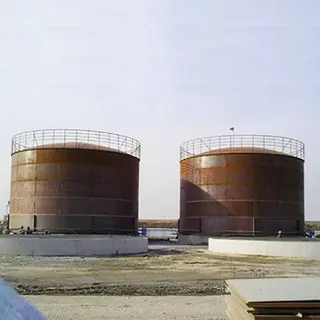

This large storage tank is a bulk storage tank designed for water, which sometimes can be called an above ground storage tank with a fixed roof.
Standard: API 650, GB 50341.
Media: Water.
Welding Code: JB/T4709.
Welding Structure: Full Penetration Weld Except Noted.
Fluid Perforemnce: Non Toxis/Non Flammable.
Working Temperature (In/Out): 25℃ (Normal Temperature).
Design Temperature: 4℃ to 80℃.
Working Pressure: ATM (Standard Atmosphere).
Design Pressure: -490 PaG to 20,000 PaG.
Corrosion Allow: 3 mm.
Full Capacity: 400 m3/ Approx. 105,668 Gallon.
Wind Pressure: 700 N/m2.
Weight (Net Mass): Up tp 23,730 kg.
Weight (Mass of Full Water): Up to 423,730 kg.
This large storage tank is a bulk storage tank designed for water, which sometimes can be called an above ground storage tank with a fixed roof.
